Comparison between the OpticStudio and Optiland backends#
from __future__ import annotations
from dataclasses import asdict
from typing import TYPE_CHECKING, Literal
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from matplotlib.colors import CenteredNorm
from mpl_toolkits.axes_grid1 import make_axes_locatable
from scipy.interpolate import CubicSpline
from scipy.ndimage import center_of_mass
import visisipy
from visisipy.backend import BackendSettings
from visisipy.opticstudio import OpticStudioBackend
from visisipy.optiland import OptilandBackend
if TYPE_CHECKING:
from matplotlib.axes import Axes
from visisipy.analysis.cardinal_points import CardinalPointsResult
from visisipy.analysis.mtf import MTFResult
from visisipy.analysis.refraction import FourierPowerVectorRefraction
Initialize both backends
BACKEND_SETTINGS = BackendSettings(
field_type="angle",
fields=[(0, 0), (0, 30), (30, 30)],
wavelengths=[0.543],
aperture_type="float_by_stop_size",
aperture_value=3.0,
)
opticstudio_backend = OpticStudioBackend(**BACKEND_SETTINGS, mode="standalone", ray_aiming="off")
optiland_backend = OptilandBackend(**BACKEND_SETTINGS, ray_aiming="paraxial")
Define an eye model. Instead of the default material model (which is a fitted model for all wavelengths), we will use the refractive indices of the Navarro model for light of 543 nm.
model = visisipy.EyeModel(geometry=visisipy.models.NavarroGeometry(), materials=visisipy.models.NavarroMaterials543())
model_myopic = visisipy.EyeModel(
visisipy.models.create_geometry(axial_length=model.geometry.axial_length + 2), visisipy.models.NavarroMaterials543()
)
model_hyperopic = visisipy.EyeModel(
visisipy.models.create_geometry(axial_length=model.geometry.axial_length - 2), visisipy.models.NavarroMaterials543()
)
Cardinal points analysis#
Calculate the cardinal point locations and the difference between the two backends.
def cardinal_points_to_dataframe(cardinal_points: CardinalPointsResult):
"""
Convert cardinal points to a pandas DataFrame.
"""
cardinal_points_dict = {
k: (float("nan"), float("nan")) if v is NotImplemented else v for k, v in asdict(cardinal_points).items()
}
return pd.DataFrame.from_dict(cardinal_points_dict, orient="index", columns=["object", "image"])
opticstudio_cardinal_points = visisipy.analysis.cardinal_points(model=model, backend=opticstudio_backend)
optiland_cardinal_points = visisipy.analysis.cardinal_points(model=model, backend=optiland_backend)
cardinal_points_comparison = cardinal_points_to_dataframe(opticstudio_cardinal_points).join(
cardinal_points_to_dataframe(optiland_cardinal_points), lsuffix="_opticstudio", rsuffix="_optiland"
)
cardinal_points_comparison["object_difference"] = (
cardinal_points_comparison["object_optiland"] - cardinal_points_comparison["object_opticstudio"]
)
cardinal_points_comparison["image_difference"] = (
cardinal_points_comparison["image_optiland"] - cardinal_points_comparison["image_opticstudio"]
)
cardinal_points_comparison
| object_opticstudio | image_opticstudio | object_optiland | image_optiland | object_difference | image_difference | |
|---|---|---|---|---|---|---|
| focal_lengths | -16.467904 | 22.029115 | -16.467904 | 22.029115 | -1.320532e-07 | 3.574475e-07 |
| focal_points | -14.885414 | 0.000014 | -14.885414 | 0.000014 | -4.542796e-07 | -2.605261e-07 |
| principal_points | 1.582490 | -22.029102 | 1.582490 | -22.029102 | -3.222264e-07 | 3.820264e-07 |
| anti_principal_points | -31.353319 | 22.029129 | -31.353319 | 22.029129 | 4.136672e-07 | 9.692146e-08 |
| nodal_points | 7.143701 | -16.467890 | 7.143701 | -16.467890 | -9.683209e-08 | -3.925792e-07 |
| anti_nodal_points | -36.914530 | 16.467918 | -36.914530 | 16.467918 | 1.882729e-07 | -1.284729e-07 |
FFT MTF analysis#

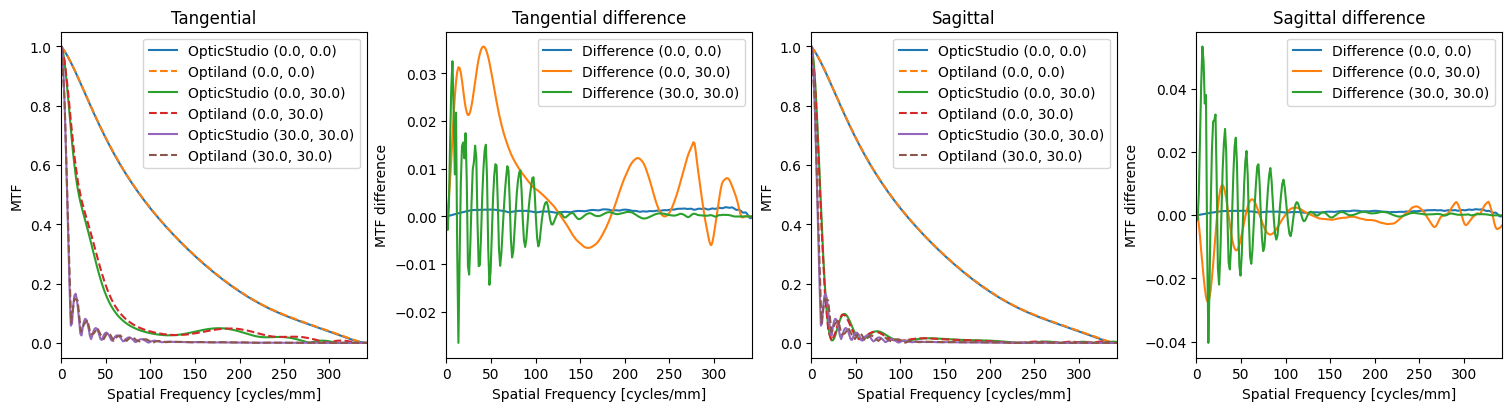

Calculate the FFT MTFs for the two backends and compare them.
Note that frequencies at which the MTFs are evaluated are different for the two backends, so the MTFs are interpolated to a common set of frequencies before comparison.
def fft_mtf_difference(fft_mtf_os: pd.Series, fft_mtf_ol: pd.Series, max_frequency: float) -> pd.Series:
"""
Calculate the difference between two FFT MTF results.
"""
step = min(np.diff(fft_mtf_os.index).min(), np.diff(fft_mtf_ol.index).min())
frequencies = np.arange(0, max_frequency + step, step)
CubicSpline(fft_mtf_os.index, fft_mtf_os)(frequencies)
interpolated_os = CubicSpline(fft_mtf_os.index, fft_mtf_os)(frequencies)
interpolated_ol = CubicSpline(fft_mtf_ol.index, fft_mtf_ol)(frequencies)
return pd.Series(interpolated_ol - interpolated_os, index=frequencies)
def compare_fft_mtfs(
fft_mtf_os: pd.Series,
fft_mtf_ol: pd.Series,
field: tuple[float, float],
max_frequency: float,
ax_mtf: Axes,
ax_diff: Axes,
):
"""
Compare two FFT MTF results by plotting them and their difference.
"""
ax_mtf.plot(fft_mtf_os.index, fft_mtf_os, label=f"OpticStudio {field}")
ax_mtf.plot(fft_mtf_ol.index, fft_mtf_ol, label=f"Optiland {field}", linestyle="dashed")
ax_mtf.set_xlim(0, max_frequency)
ax_diff.plot(fft_mtf_difference(fft_mtf_os, fft_mtf_ol, max_frequency), label=f"Difference {field}")
ax_diff.set_xlim(0, max_frequency)
def find_maximum_frequency(fft_mtf: MTFResult, threshold: float = 1e-4) -> float:
"""
Find the maximum frequency where the FFT MTF is above a certain threshold.
"""
all_mtfs = [mtf.tangential for mtf in fft_mtf.values()]
all_mtfs.extend([mtf.sagittal for mtf in fft_mtf.values()])
return max(mtf.index[mtf < threshold].min() for mtf in all_mtfs)
fft_mtf_os = visisipy.analysis.fft_mtf(model=model, sampling=256, maximum_frequency=400, backend=opticstudio_backend)
fft_mtf_ol = visisipy.analysis.fft_mtf(model=model, sampling=256, maximum_frequency=400, backend=optiland_backend)
fig, ax = plt.subplots(nrows=1, ncols=4, figsize=(15, 4), constrained_layout=True)
max_frequency = max(find_maximum_frequency(fft_mtf_os), find_maximum_frequency(fft_mtf_ol))
for field in fft_mtf_os:
os_tangential = fft_mtf_os[field].tangential
ol_tangential = fft_mtf_ol[field].tangential
compare_fft_mtfs(fft_mtf_os[field].tangential, fft_mtf_ol[field].tangential, field, max_frequency, ax[0], ax[1])
compare_fft_mtfs(fft_mtf_os[field].sagittal, fft_mtf_ol[field].sagittal, field, max_frequency, ax[2], ax[3])
ax[0].set_title("Tangential")
ax[0].set_xlabel("Spatial Frequency [cycles/mm]")
ax[0].set_ylabel("MTF")
ax[0].legend()
ax[1].set_title("Tangential difference")
ax[1].set_xlabel("Spatial Frequency [cycles/mm]")
ax[1].set_ylabel("MTF difference")
ax[1].legend()
ax[2].set_title("Sagittal")
ax[2].set_xlabel("Spatial Frequency [cycles/mm]")
ax[2].set_ylabel("MTF")
ax[2].legend()
ax[3].set_title("Sagittal difference")
ax[3].set_xlabel("Spatial Frequency [cycles/mm]")
ax[3].set_ylabel("MTF difference")
ax[3].legend();
FFT PSF analysis#
Calculate FFT PSFs for both backends and compare the results. The difference plots show the relative difference, but PSF values smaller than 0.001 are not shown to avoid zero division errors.
def plot_dataframe(
ax: plt.Axes,
df: pd.DataFrame,
title: str,
cbar_label: str = "Relative intensity",
xlabel: str = "X [μm]",
ylabel: str = "Y [μm]",
**kwargs,
):
im = ax.imshow(
df.values,
extent=(df.columns[0], df.columns[-1], df.index[0], df.index[-1]),
origin="lower",
**kwargs,
)
divider = make_axes_locatable(ax)
cax = divider.append_axes("right", size="5%", pad=0.05)
ax.set_title(title)
ax.set_xlabel(xlabel)
ax.set_ylabel(ylabel)
plt.colorbar(im, label=cbar_label, cax=cax)
def _align_and_compare_psfs(
psf1: pd.DataFrame, psf2: pd.DataFrame, shift_max_distance: int = 10, center_of_mass_threshold: float = 0.001
) -> pd.DataFrame:
"""Shifts the PSFs to correct for alignment differences and returns their difference."""
center_psf1 = np.array(center_of_mass(psf1.values > center_of_mass_threshold))
center_psf2 = np.array(center_of_mass(psf2.values > center_of_mass_threshold))
center_difference = np.round(center_psf2 - center_psf1).astype(int)
if abs(center_difference[0]) < shift_max_distance and abs(center_difference[1]) < shift_max_distance:
# Align the peaks of the two PSFs
psf1_shifted = np.roll(
psf1.values,
center_difference,
axis=(0, 1),
)
else:
# If peaks are not close, use a default value based on sampling differences
psf1_shifted = np.roll(
psf1.values,
(0, 1),
axis=(0, 1),
)
return pd.DataFrame(
psf1_shifted - psf2.values,
index=psf1.index,
columns=psf1.columns,
)
def compare_fft_psfs(
model: visisipy.EyeModel,
field: tuple[float, float],
sampling: int = 128,
):
"""
Compare FFT PSFs for OpticStudio and Optiland backends.
"""
shift_max_peak_distance = 10 # Maximum distance to shift the PSF peak for alignment
fft_psf_opticstudio = visisipy.analysis.fft_psf(
model=model,
sampling=sampling,
field_coordinate=field,
backend=opticstudio_backend,
)
fft_psf_optiland = visisipy.analysis.fft_psf(
model=model,
sampling=sampling,
field_coordinate=field,
backend=optiland_backend,
)
fig, ax = plt.subplots(1, 3, figsize=(14, 4), constrained_layout=True)
plot_dataframe(ax[0], fft_psf_opticstudio, "OpticStudio FFT PSF")
plot_dataframe(ax[1], fft_psf_optiland, "Optiland FFT PSF")
comparison = _align_and_compare_psfs(
fft_psf_opticstudio, fft_psf_optiland, shift_max_distance=shift_max_peak_distance
)
plot_dataframe(ax[2], comparison, "Difference", "OpticStudio - Optiland", cmap="coolwarm", norm=CenteredNorm())
fig.suptitle(f"FFT PSF Comparison for x={field[0]}°, y={field[1]}°")

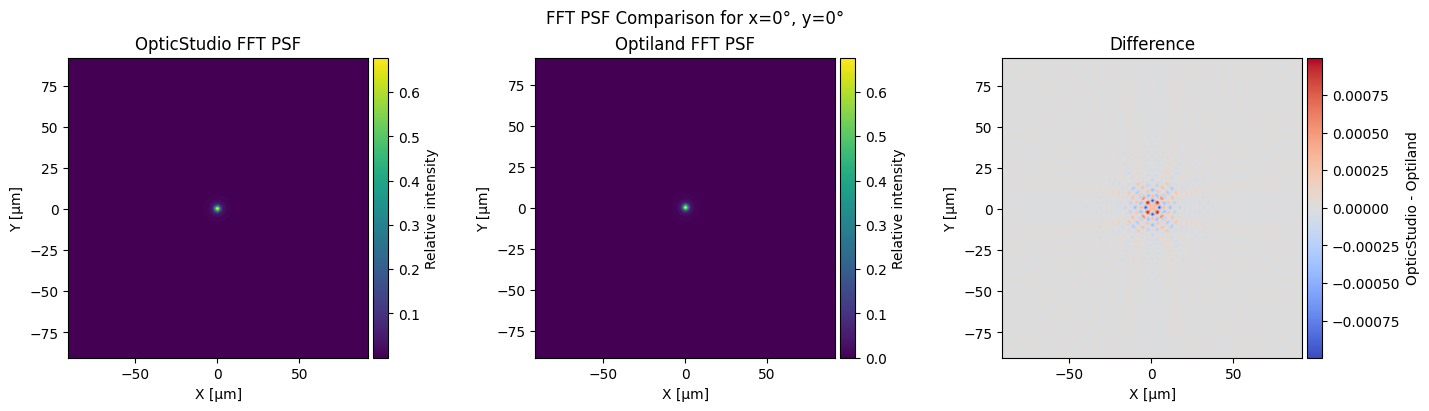

compare_fft_psfs(model, field=(0, 0))

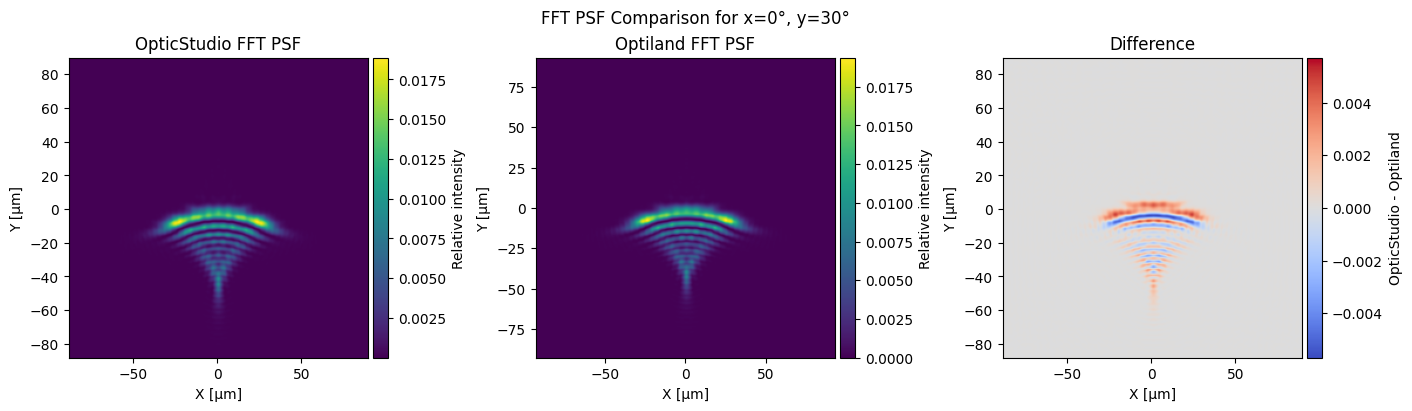

compare_fft_psfs(model, field=(0, 30))

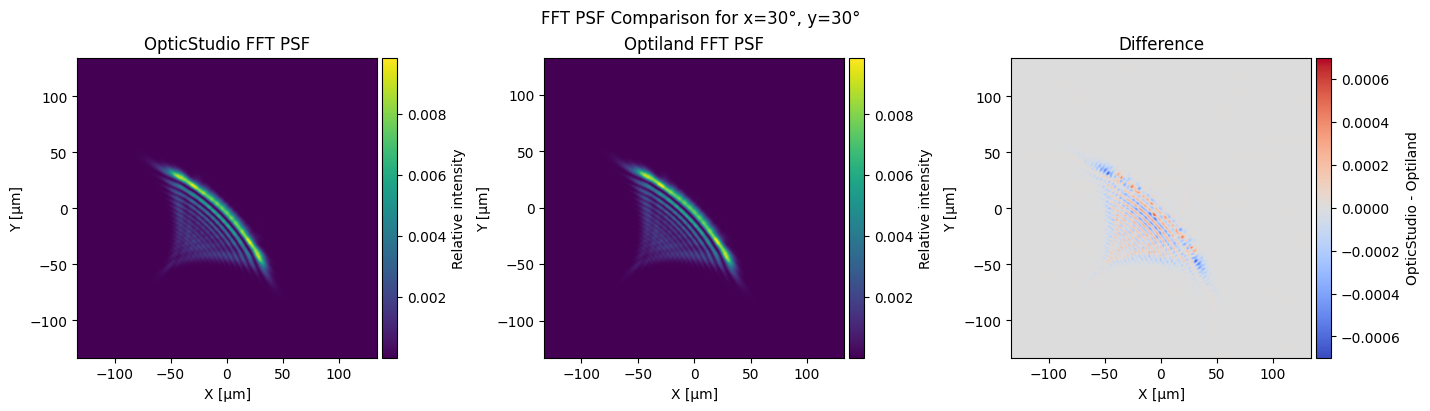

compare_fft_psfs(model, field=(30, 30), sampling=256)
Huygens PSF analysis#

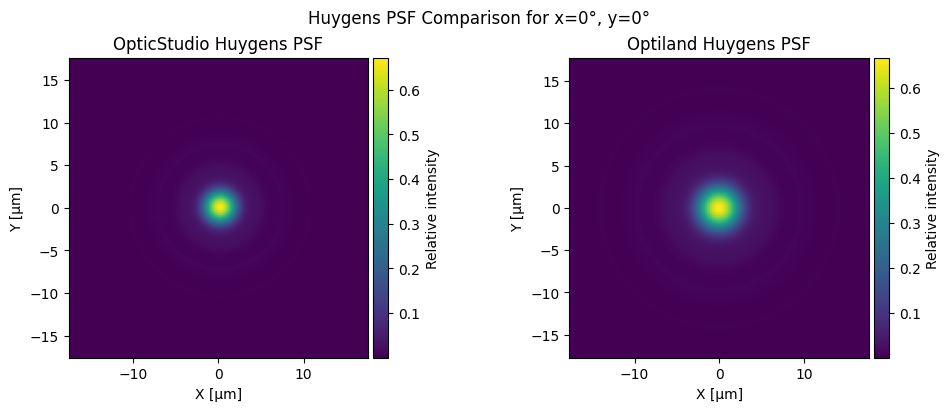

Calculate Huygens PSFs for both backends and plot them side by side. Because both backends use different sampling strategies and PSF extents, the PSFs are not directly comparable, but they should be qualitatively similar.
def compare_huygens_psfs(
model: visisipy.EyeModel, field: tuple[float, float], pupil_sampling: int = 128, image_sampling: int = 128
):
"""
Compare Huygens PSFs for OpticStudio and Optiland backends.
"""
huygens_psf_opticstudio = visisipy.analysis.huygens_psf(
model=model,
field_coordinate=field,
pupil_sampling=pupil_sampling,
image_sampling=image_sampling,
backend=opticstudio_backend,
)
huygens_psf_optiland = visisipy.analysis.huygens_psf(
model=model,
field_coordinate=field,
pupil_sampling=pupil_sampling,
image_sampling=image_sampling,
backend=optiland_backend,
)
fig, ax = plt.subplots(1, 2, figsize=(10, 4), constrained_layout=True)
plot_dataframe(ax[0], huygens_psf_opticstudio, "OpticStudio Huygens PSF")
plot_dataframe(ax[1], huygens_psf_optiland, "Optiland Huygens PSF")
fig.suptitle(f"Huygens PSF Comparison for x={field[0]}°, y={field[1]}°")

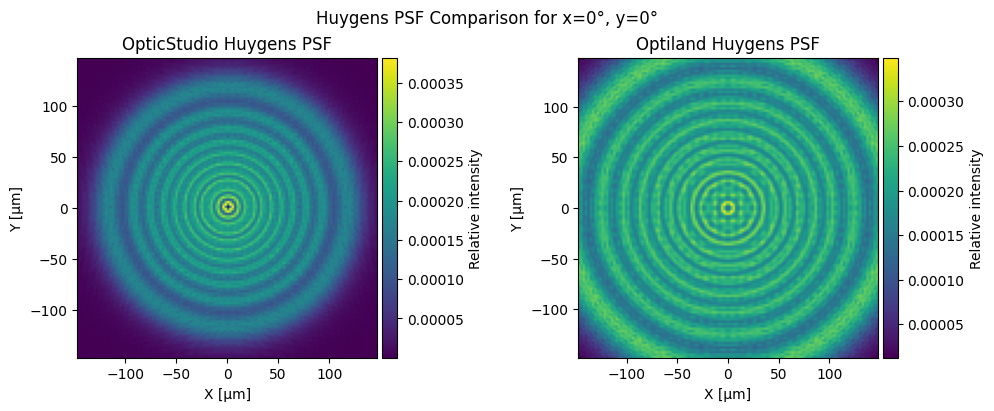

compare_huygens_psfs(model, field=(0, 0))

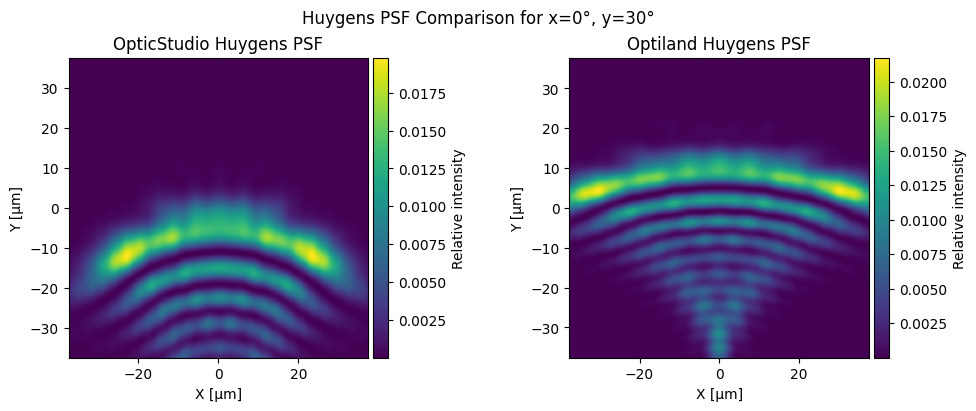

compare_huygens_psfs(model, field=(0, 30), pupil_sampling=128, image_sampling=256)
compare_huygens_psfs(model_myopic, field=(0, 0))
OPD map#

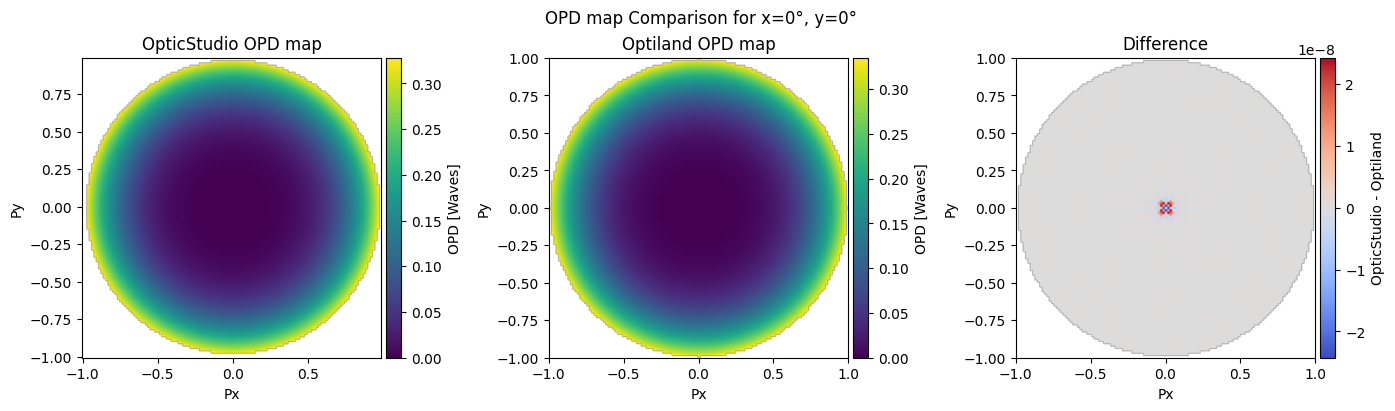

Calculate Optical Path Difference (OPD) maps for both backends and compare the results.
def compare_opd_maps(model: visisipy.EyeModel, field: tuple[float, float], sampling: int = 128):
"""
Compare OPD maps for OpticStudio and Optiland backends.
"""
opd_map_opticstudio = visisipy.analysis.opd_map(
model=model,
field_coordinate=field,
sampling=sampling,
remove_tilt=False,
use_exit_pupil_shape=False,
backend=opticstudio_backend,
)
opd_map_optiland = visisipy.analysis.opd_map(
model=model,
field_coordinate=field,
sampling=sampling - 1,
remove_tilt=False,
use_exit_pupil_shape=False,
backend=optiland_backend,
)
difference = pd.DataFrame(
opd_map_opticstudio.values[1:, 1:] - opd_map_optiland.values,
index=opd_map_optiland.index,
columns=opd_map_optiland.columns,
)
fig, ax = plt.subplots(1, 3, figsize=(14, 4), constrained_layout=True)
plot_dataframe(
ax[0], opd_map_opticstudio, "OpticStudio OPD map", cbar_label="OPD [Waves]", xlabel="Px", ylabel="Py"
)
plot_dataframe(ax[1], opd_map_optiland, "Optiland OPD map", cbar_label="OPD [Waves]", xlabel="Px", ylabel="Py")
plot_dataframe(
ax[2],
difference,
"Difference",
"OpticStudio - Optiland",
cmap="coolwarm",
norm=CenteredNorm(),
xlabel="Px",
ylabel="Py",
)
fig.suptitle(f"OPD map Comparison for x={field[0]}°, y={field[1]}°")
return opd_map_opticstudio, opd_map_optiland, difference
_ = compare_opd_maps(model, field=(0, 0))

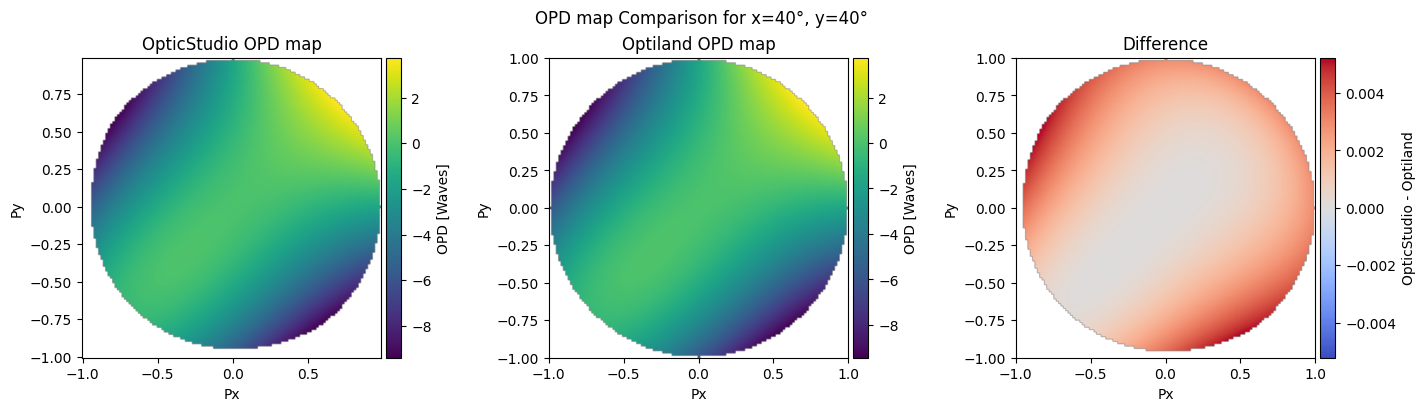

_ = compare_opd_maps(model, field=(40, 40))
D:\code\zemax\visisipy\visisipy\opticstudio\analysis\wavefront.py:118: UserWarning: Field coordinate (40, 40) not found. Adding it to the system.
field_number = set_field(backend, field_coordinate, field_type)
D:\code\zemax\visisipy\visisipy\optiland\analysis\wavefront.py:139: UserWarning: Field coordinate (40, 40) not found. Adding it to the system.
normalized_field = set_field(backend, field_coordinate, field_type)
Unfortunately, the OPD maps at off-axis fields cannot be compared directly, because OpticStudio takes the exit pupil shape into account even if this is disabled.
Raytracing analysis#

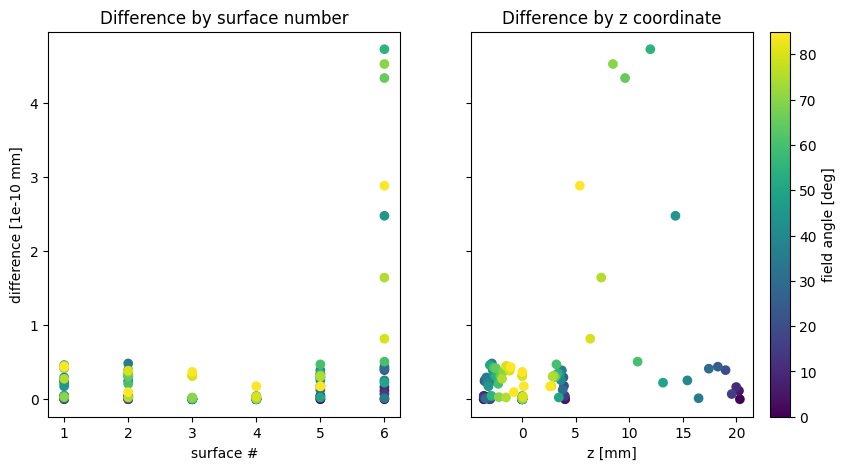

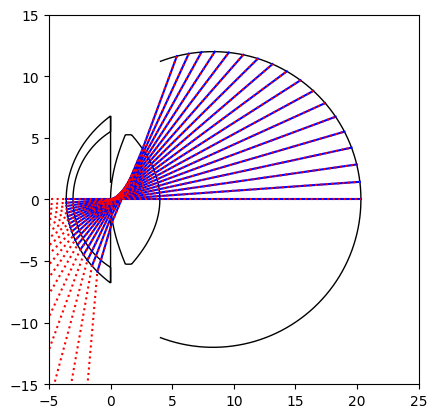

Perform a number of ray traces in both backends and plot the results on top of each other.
RAYTRACE_FIELDS = [(0, y) for y in np.arange(0, 90, step=5).astype(float)]
raytrace_opticstudio = visisipy.analysis.raytrace(
model=model,
coordinates=RAYTRACE_FIELDS,
wavelengths=[0.543],
field_type="angle",
pupil=(0, 0),
backend=opticstudio_backend,
)
raytrace_optiland = visisipy.analysis.raytrace(
model=model,
coordinates=RAYTRACE_FIELDS,
wavelengths=[0.543],
field_type="angle",
pupil=(0, 0),
backend=optiland_backend,
)
# Optiland uses different coordinate conventions
raytrace_optiland["z"] -= model.geometry.cornea_thickness + model.geometry.anterior_chamber_depth
Plot the ray trace results on top of each other.
def plot_raytrace_result(raytrace_result: pd.DataFrame, ax: plt.Axes, color="blue", linestyle="-"):
for _, df in raytrace_result.groupby("field"):
ax.plot(df.z, df.y, color=color, linestyle=linestyle)
fig, ax = plt.subplots()
visisipy.plots.plot_eye(ax=ax, geometry=model.geometry, lens_edge_thickness=0.5, backend="opticstudio")
plot_raytrace_result(raytrace_opticstudio, ax=ax)
plot_raytrace_result(raytrace_optiland, ax=ax, color="red", linestyle=":")
ax.set_xlim(-5, 25)
ax.set_ylim(-15, 15)
ax.set_aspect("equal")
Calculate the distances between the ray trace results point by point and plot them as a function of the Z-coordinate and the surface index.
_select_columns = ["field", "index", "x", "y", "z"]
raytrace_comparison = pd.merge(
raytrace_opticstudio[_select_columns],
raytrace_optiland[_select_columns],
on=["field", "index"],
suffixes=("_opticstudio", "_optiland"),
).query("index != 0")
raytrace_comparison.eval(
"distance = sqrt((x_optiland - x_opticstudio)**2 + (y_optiland - y_opticstudio)**2)", inplace=True
)
fig, ax = plt.subplots(nrows=1, ncols=2, figsize=(10, 5), sharey=True)
_field_coordinates = [f[1] for f in raytrace_comparison.field]
m = ax[0].scatter(raytrace_comparison["index"], raytrace_comparison.distance * 1e10, c=_field_coordinates)
ax[0].set_xlabel("surface #")
ax[0].set_ylabel("difference [1e-10 mm]")
ax[0].set_title("Difference by surface number")
ax[1].scatter(raytrace_comparison.z_opticstudio, raytrace_comparison.distance * 1e10, c=_field_coordinates)
ax[1].set_xlabel("z [mm]")
ax[1].set_title("Difference by z coordinate")
plt.colorbar(m, ax=ax[1], label="field angle [deg]")
<matplotlib.colorbar.Colorbar at 0x1c90b338a50>
Strehl ratio analysis#
Calculate the Strehl ratio for both backends and all supported PSF types, and compare the results.
psf_types: list[Literal["fft", "huygens"]] = ["fft", "huygens"]
strehl_ratios = {}
for backend in (opticstudio_backend, optiland_backend):
strehl_ratios[backend.type] = {}
for psf_type in psf_types:
try:
strehl_ratios[backend.type][psf_type] = visisipy.analysis.strehl_ratio(
model=model,
field_coordinate=(0, 0),
psf_type=psf_type,
backend=backend,
)
except NotImplementedError:
strehl_ratios[backend.type][psf_type] = np.nan
pd.DataFrame(strehl_ratios).style.format(precision=3)
| opticstudio | optiland | |
|---|---|---|
| fft | nan | 0.677 |
| huygens | 0.671 | 0.667 |
Zernike standard coefficients#
Calculate the Zernike standard coefficients for the Navarro eye model at different field angles. Note that the y-axes in the plots are logarithmic.
zernike_central_opticstudio = visisipy.analysis.zernike_standard_coefficients(
model=model,
field_coordinate=(0, 0),
wavelength=0.543,
sampling=128,
maximum_term=45,
field_type="angle",
backend=opticstudio_backend,
)
zernike_central_optiland = visisipy.analysis.zernike_standard_coefficients(
model=model,
field_coordinate=(0, 0),
wavelength=0.543,
sampling=128,
maximum_term=45,
field_type="angle",
backend=optiland_backend,
)
def compare_zernike_coefficients(
zernike_coefficients_opticstudio: dict,
zernike_coefficients_optiland: dict,
):
"""
Compare Zernike coefficients from OpticStudio and Optiland.
"""
differences = {k: (v - zernike_coefficients_optiland[k]) for k, v in zernike_coefficients_opticstudio.items()}
_, ax = plt.subplots(nrows=1, ncols=2, figsize=(10, 5), layout="constrained")
ax[0].bar(
zernike_coefficients_opticstudio.keys(),
zernike_coefficients_opticstudio.values(),
width=0.5,
label="OpticStudio",
)
ax[0].bar(
np.fromiter(zernike_coefficients_optiland.keys(), dtype=int) + 0.5,
zernike_coefficients_optiland.values(),
width=0.5,
label="Optiland",
)
ax[0].set_yscale("log")
ax[0].set_title("Zernike coefficients")
ax[0].set_xlabel("Coefficient")
ax[0].set_ylabel("Value [μm]")
ax[0].legend()
ax[1].bar(differences.keys(), differences.values(), width=0.5, label="Difference")
ax[1].axhline(0, color="black", linestyle="--", linewidth=0.5)
ax[1].set_title("Difference between OpticStudio and Optiland")
ax[1].set_yscale("log")
ax[1].set_xlabel("Coefficient")
ax[1].set_ylabel("Difference [μm]")

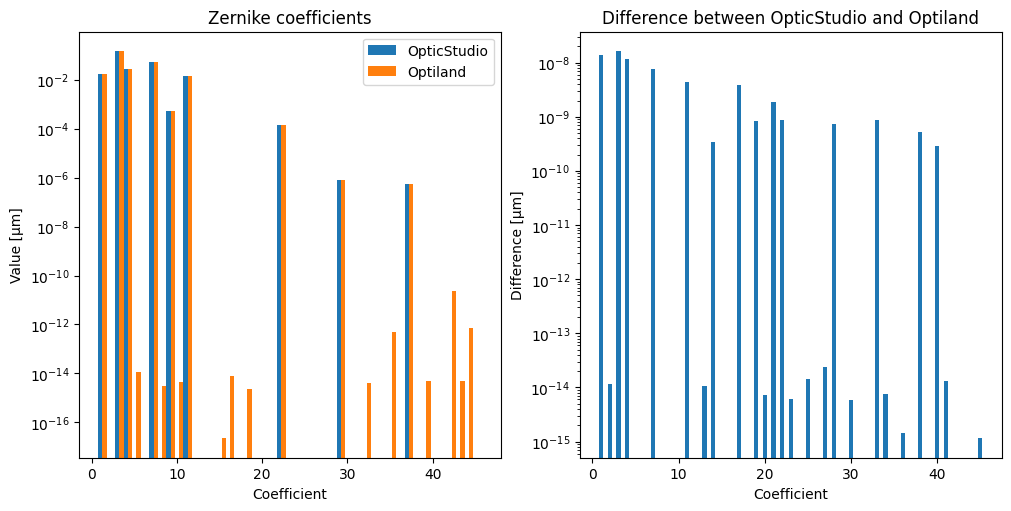

compare_zernike_coefficients(zernike_central_opticstudio, zernike_central_optiland)
This is an emmetropic eye, so the aberrations are very small. They will be slightly larger at a nonzero eccentricity:
zernike_10deg_opticstudio = visisipy.analysis.zernike_standard_coefficients(
model=model,
field_coordinate=(0, 10),
wavelength=0.543,
sampling=128,
maximum_term=45,
field_type="angle",
backend=opticstudio_backend,
)
zernike_10deg_optiland = visisipy.analysis.zernike_standard_coefficients(
model=model,
field_coordinate=(0, 10),
wavelength=0.543,
sampling=128,
maximum_term=45,
field_type="angle",
backend=optiland_backend,
)

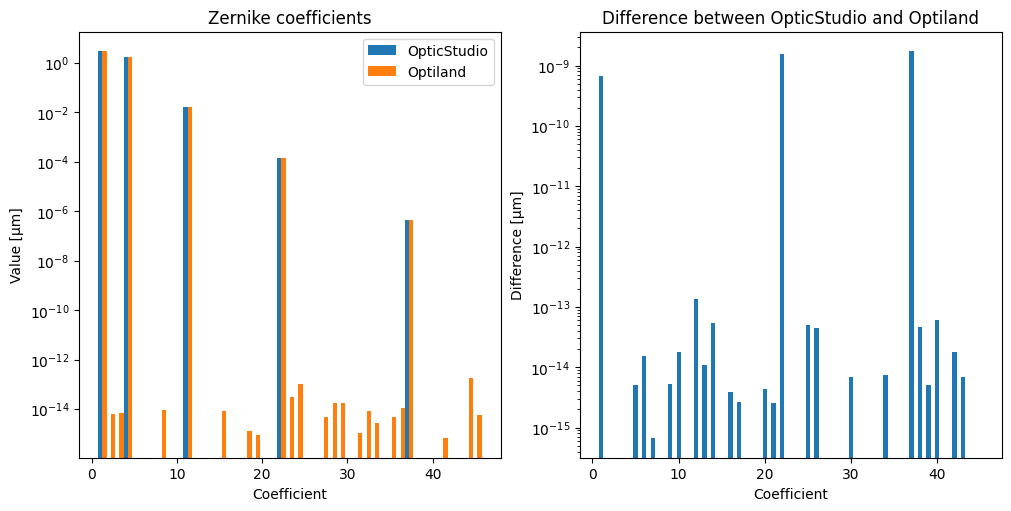

compare_zernike_coefficients(zernike_10deg_opticstudio, zernike_10deg_optiland)
zernike_myopic_opticstudio = visisipy.analysis.zernike_standard_coefficients(
model=model_myopic,
field_coordinate=(0, 0),
wavelength=0.543,
sampling=128,
maximum_term=45,
field_type="angle",
backend=opticstudio_backend,
)
zernike_myopic_optiland = visisipy.analysis.zernike_standard_coefficients(
model=model_myopic,
field_coordinate=(0, 0),
wavelength=0.543,
sampling=128,
maximum_term=45,
field_type="angle",
backend=optiland_backend,
)

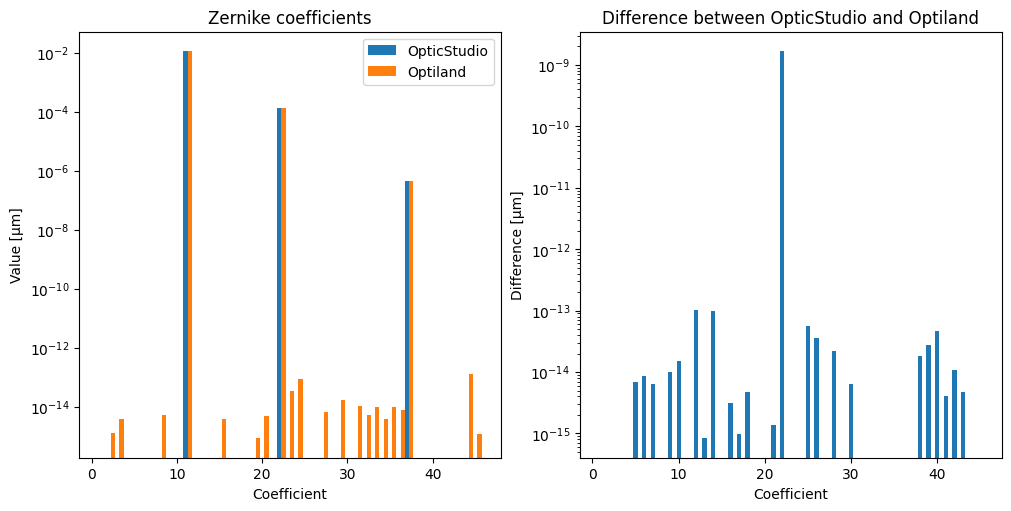

compare_zernike_coefficients(zernike_myopic_opticstudio, zernike_myopic_optiland)
zernike_hyperopic_opticstudio = visisipy.analysis.zernike_standard_coefficients(
model=model_hyperopic,
field_coordinate=(0, 0),
wavelength=0.543,
sampling=128,
maximum_term=45,
field_type="angle",
backend=opticstudio_backend,
)
zernike_hyperopic_optiland = visisipy.analysis.zernike_standard_coefficients(
model=model_hyperopic,
field_coordinate=(0, 0),
wavelength=0.543,
sampling=128,
maximum_term=45,
field_type="angle",
backend=optiland_backend,
)

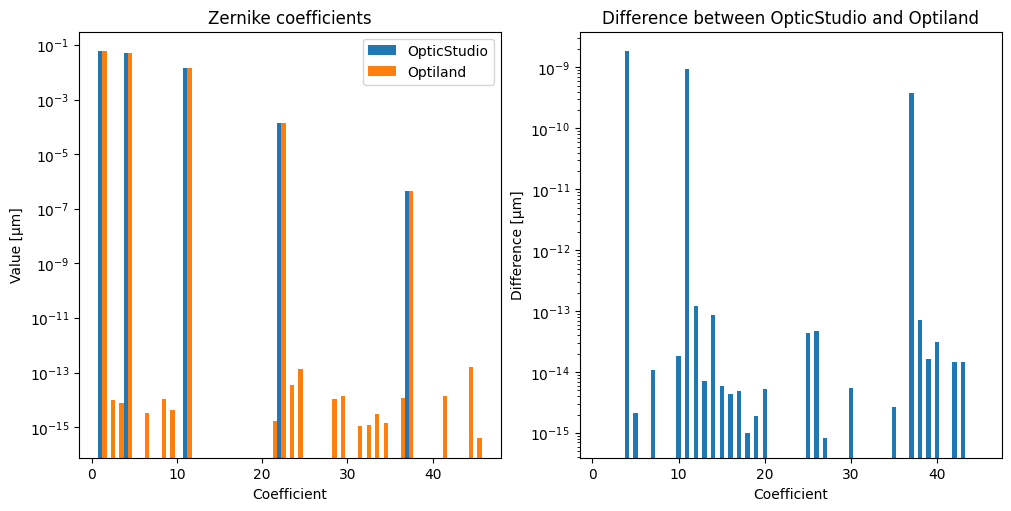

compare_zernike_coefficients(zernike_hyperopic_opticstudio, zernike_hyperopic_optiland)
RMS-HOA#
Calculate the root-mean-square of the higher-order aberrations (RMS-HOA) for the Navarro eye model on the previously defined eye models.
rms_hoa_parameters = {
"emmetropic": {
"model": model,
"field": (0, 0),
},
"myopic": {
"model": model_myopic,
"field": (0, 0),
},
"myopic_10deg": {
"model": model_myopic,
"field": (0, 10),
},
"hyperopic": {
"model": model_hyperopic,
"field": (0, 0),
},
}
rms_hoa_comparison = []
for name, parameters in rms_hoa_parameters.items():
rms_hoa_opticstudio = visisipy.analysis.rms_hoa(
model=parameters["model"],
field_coordinate=parameters["field"],
wavelength=0.543,
sampling=128,
maximum_term=45,
field_type="angle",
backend=opticstudio_backend,
)
rms_hoa_optiland = visisipy.analysis.rms_hoa(
model=parameters["model"],
field_coordinate=parameters["field"],
wavelength=0.543,
sampling=128,
maximum_term=45,
field_type="angle",
backend=optiland_backend,
)
rms_hoa_comparison.append(
{
"name": name,
"opticstudio": rms_hoa_opticstudio,
"optiland": rms_hoa_optiland,
"difference": rms_hoa_opticstudio - rms_hoa_optiland,
}
)
pd.DataFrame(rms_hoa_comparison).set_index("name")
D:\code\zemax\visisipy\visisipy\optiland\analysis\zernike_coefficients.py:74: UserWarning: Field coordinate (0, 10) not found. Adding it to the system.
normalized_field = set_field(backend, field_coordinate, field_type)
| opticstudio | optiland | difference | |
|---|---|---|---|
| name | |||
| emmetropic | 0.013821 | 0.013821 | 9.011673e-10 |
| myopic | 0.015926 | 0.015926 | -3.135235e-09 |
| myopic_10deg | 0.061704 | 0.061704 | 1.455105e-07 |
| hyperopic | 0.011386 | 0.011386 | -2.430623e-10 |
Refraction#
Calculate the on-axis and off-axis refraction using both backends.
refraction_onaxis_opticstudio = visisipy.analysis.refraction(
model=model,
field_coordinate=(0, 0),
sampling=128,
wavelength=0.543,
field_type="angle",
backend=opticstudio_backend,
)
refraction_onaxis_optiland = visisipy.analysis.refraction(
model=model,
field_coordinate=(0, 0),
sampling=128,
wavelength=0.543,
field_type="angle",
backend=optiland_backend,
)
def compare_refractions(
refraction_opticstudio: FourierPowerVectorRefraction,
refraction_optiland: FourierPowerVectorRefraction,
):
"""
Compare refractions from OpticStudio and Optiland.
"""
df = pd.DataFrame(
{
"OpticStudio": asdict(refraction_opticstudio),
"Optiland": asdict(refraction_optiland),
}
)
df["Difference"] = df["OpticStudio"] - df["Optiland"]
return df
compare_refractions(refraction_onaxis_opticstudio, refraction_onaxis_optiland)
| OpticStudio | Optiland | Difference | |
|---|---|---|---|
| M | 0.000045 | 4.546456e-05 | -2.090001e-07 |
| J0 | 0.000000 | -7.418248e-12 | 7.418248e-12 |
| J45 | 0.000000 | -1.580311e-12 | 1.580311e-12 |
refraction_offaxis_opticstudio = visisipy.analysis.refraction(
model=model,
field_coordinate=(0, 10),
sampling=128,
wavelength=0.543,
field_type="angle",
backend=opticstudio_backend,
)
refraction_offaxis_optiland = visisipy.analysis.refraction(
model=model,
field_coordinate=(0, 10),
sampling=128,
wavelength=0.543,
field_type="angle",
backend=optiland_backend,
)
compare_refractions(refraction_offaxis_opticstudio, refraction_offaxis_optiland)
D:\code\zemax\visisipy\visisipy\opticstudio\analysis\refraction.py:68: UserWarning: Wavelength 0.543 not found. Adding it to the system.
wavelength = set_wavelength(backend, wavelength)
D:\code\zemax\visisipy\visisipy\optiland\analysis\zernike_coefficients.py:74: UserWarning: Field coordinate (0, 10) not found. Adding it to the system.
normalized_field = set_field(backend, field_coordinate, field_type)
| OpticStudio | Optiland | Difference | |
|---|---|---|---|
| M | 0.092059 | 9.205975e-02 | -8.783498e-07 |
| J0 | 0.119670 | 1.196702e-01 | 6.554188e-08 |
| J45 | 0.000000 | 2.168976e-13 | -2.168976e-13 |
refraction_myopic_opticstudio = visisipy.analysis.refraction(
model=model_myopic,
field_coordinate=(0, 0),
sampling=128,
wavelength=0.543,
field_type="angle",
backend=opticstudio_backend,
)
refraction_myopic_optiland = visisipy.analysis.refraction(
model=model_myopic,
field_coordinate=(0, 0),
sampling=128,
wavelength=0.543,
field_type="angle",
backend=optiland_backend,
)
compare_refractions(refraction_myopic_opticstudio, refraction_myopic_optiland)
| OpticStudio | Optiland | Difference | |
|---|---|---|---|
| M | -5.944697 | -5.944698e+00 | 2.277904e-07 |
| J0 | 0.000000 | -5.511146e-12 | 5.511146e-12 |
| J45 | 0.000000 | -1.018927e-12 | 1.018927e-12 |
